Demolition grab DG-16

Demolition grab DG-16

Demolition, recycling, loading…

Features

  • Oversized pins all combined with heavy duty wear bushings on rotating points.
  • Powerful hydraulic rotation motor.
  • No drain line needed for the hydraulic motor.
  • One hydraulic cylinder with cushion at the end of stroke (opening).
  • Less hydraulic components, less possibility of leakage.
  • Hydraulic connections at both sides of the Swivel Top
  • Easy maintenance.
  • Pilot check valve against unexpected opening of the arms.
  • All hydraulic connections for opening/closing G3/4”. Less heating up of hydraulic oil.
  • Stiff Frame with Side plates and Bottom plate made of Hardox400.
  • Arms complete build up with Hardox400.
  • Interchangeable and reversible cutters (HB500).
  • Heavy and strong bearing (slewing ring) with 360° hydraulic rotation.
  • Brake valve on hydraulic motor for protection of the motor seals.
  • Easy to grease in one position.
  • Large jaw opening and high closing force.
  • Special requests can be discussed.
  • Optional : cutters.
  • Optional : perforated arm.
  • Special request

Specification

Model NPK DG-16
Excavator weight (ton) 10 - 16
Weight (kg) 875
Capacity (L) 425
Open/close – Working pressure (MPa) 25 - 35
Open/close – Oil flow (l/min) 60 - 100
Rotation – Working pressure (MPa) 10 - 14
Rotation – Oil flow (l/min) 20 - 30
Closing force (kN) 48
Jaw – opening (mm) 1850
Width (mm) 860

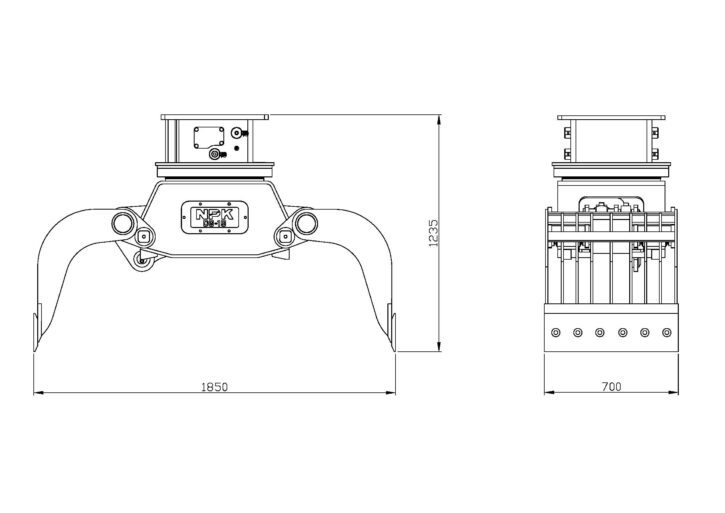

Drawing

Grab DG-16
