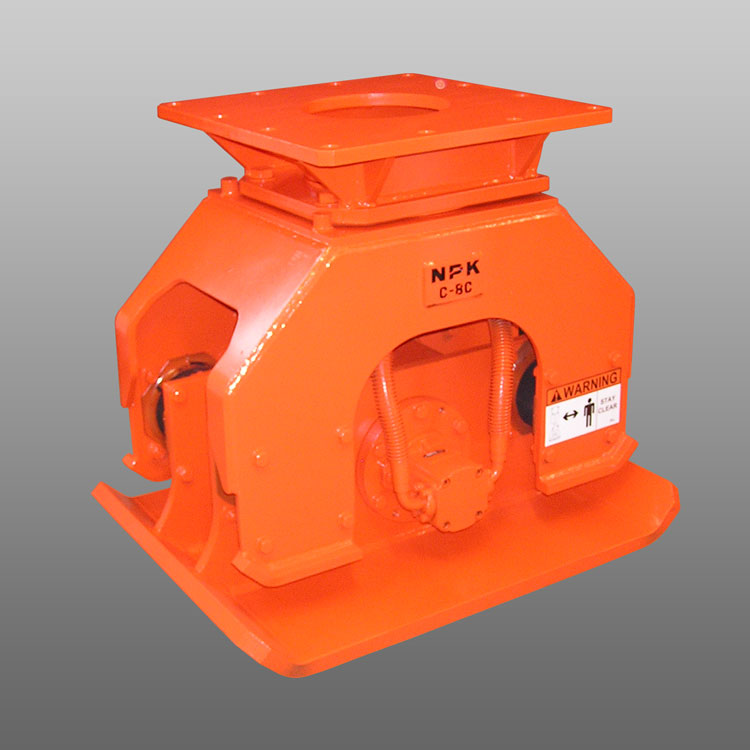

Compactor C-8C
Greater impulse energy for more compactor/driver productivity
Features
- Swivel top to minimize carrier repositioning.
- Hoses are routed out of the back of the compactor, safely away from the trench wall.
- Integrated flow control and pressure regulating valves protect the motor from excessive flow and pressure.
- Heavy-duty, direct drive gear motors.
- Durable rubber shock mounts to isolate vibration.
- Self-aligning, double row, spherical roller bearings with heavy duty steel roller cage.
- Internally routed hoses for maximum protection.
- Oil splash lubrication, eliminates routine greasing.
Specification
| Model NPK | C-8C |
| Excavator weight (ton) | 14 – 34 |
| Impuls force (kg) | 11000 |
| Cycles per min (c/min) | 2200 |
| Working pressure (MPa) | 14 – 17 |
| Oil flow (l/min) | 145 – 160 |
| Dimensions base plate (mm) | 860×1170 |
| Weight (kg) | 1056 |
| Heigth (mm) | 1145 |
| Width (mm) | 860 |
Drawing
